MASHIMA MOTORS SUITABLE FOR 'OO' GAUGE.



MASHIMA 16xx

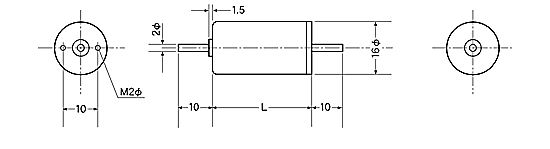

Mashima 1626 Round Can
Mashima 1626 Round Can

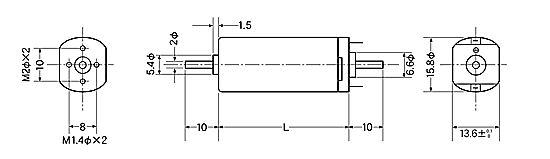

Mashima 1628 Flat Can
Mashima 1628 Flat Can
Our Ref
Size
Description
Price
MM5
1626
 Roundcan twin 5mm length shafts, 2mm shaft diameter.
SOLD OUT
MM2
1628
 Flatcan twin 5mm length shafts, 2mm shaft diameter.
SOLD OUT





Mashima 16xx series technical specifications.
Model Number
Length
Rated Voltage (DC)
Rated Speed (r.p.m)
Rated Current (mA)
Number of Poles
1626
26.5mm
12
14200
90
5
1628
28mm
12
12000
80
5

MASHIMA. 16xx

MASHIMA. 16xx





MASHIMA 12xx

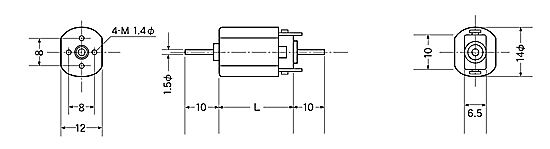

Mashima 1224 dimensions
Mashima 1224 Flat Can
Our Ref
Size
Description
Price
MM2
1224
 Flatcan twin 5mm length shafts, 1.5mm shaft diameter.
SOLD OUT





Mashima 12xx series technical specifications.
Model Number
Length
Rated Voltage (DC)
Rated Speed (r.p.m)
Rated Current (mA)
Number of Poles
1224
24mm
12
12000
40
5

MASHIMA. 16xx

MASHIMA. 16xx



MASHIMA 10xx

Mashima 10xx Flat Can
Our Ref
Size
Description
Price
MM5
1020
 Flatcan twin 5mm length shafts, 1.5mm shaft diameter.
SOLD OUT
MM2
1024
 Flatcan twin 5mm length shafts, 1.5mm shaft diameter.
£30.00





Mashima 10xx series technical specifications.
Model Number
Length
Rated Voltage (DC)
Rated Speed (r.p.m)
Rated Current (mA)
Number of Poles
1020
20mm
12
24000
70
5
1024
24mm
12
18000
60
5

MASHIMA. 16xx

MASHIMA. 16xx





GEAR BOXES AND GEAR SETS SUITABLE FOR 'OO'

Our Ref
Description
Price
GBE1
 Mashima Gearbox suitable for 16xx series motors with 33 to 1 Worm and gear.
£13.50
GBE2
 Mashima Gearbox suitable for 16xx series motors with 40 to 1 Worm and gear
£13.50
GBE3
 Mashima Gearbox suitable for 16xx series motors with 50 to 1 Worm and gear.
£13.50
GBE4
 Mashima Gearbox suitable for 10xx series motors with 40 to 1 Worm and gear
£13.50
GBS1
 Mashima Gear Set suitable for 16xx series motors with 33 to 1 Worm and gear.
£9.50
GBS2
 Mashima Gear Set suitable for 16xx series motors with 40 to 1 Worm and gear
£9.50
GBS3
 Mashima Gear Set suitable for 16xx series motors with 30 to 1 Worm and gear.
£9.50
GBS4
 Mashima Gear Set suitable for 16xx series motors with Large 40 to 1 Worm and gear
£9.50
GBF1
 Mashima Gearbox suitable for 10xx & 12xx series motors with 33 to 1 Worm and gear.
£13.50
GBF2
 Mashima Gearbox suitable for 10xx & 12xx series motors with 40 to 1 Worm and gear
£13.50
GSF1
 Mashima Gearbox suitable for 10xx & 12xx series motors with 33 to 1 Worm and gear.
£9.50



























MASHIMA MULTI-BUY DEALS

The price of Mashima motors is currently £25.00. We are offering the following multibuy deals though to those who purchase reasonable quantities of these superb motors:
Our Ref
Description
Cost
Equivelant Unit Price
5 deal
 Any Five Mashima Motors (can mix types)
£137.50
£27.50
10 deal
 Any Ten Mashima Motors (can mix types)
£250.00
£25.00







Trade terms are also available on all Mashima motors for legitimate models railway dealers or professional model makers buying in reasonable trade quantities.
