Peco Trackwork

As a starter in 'O' gauge there is basically two routes to look at to get started but remember this is only an introduction as everyone's requirements are different as is the space they have to work with.

Set Track Option

Two Boxes of Peco set track curves and a box of set track straights giving you an oval 10'7" by 6'9" (323.7 cms x 205.6cm)

If required there is also the Peco PL80 power feed available at an additional £6.75

SET TRACK OPTION

Ref.
Description
R.R.P.
Our Price
Set Track Starter 2 boxes Peco Set Track Curves & 1 box Peco Set Track Straights
£169.20
£135.25
STU750
SETTRACK UNIFROG RIGHT HAND POINT (Radius 40.5 inch, Angle 22.5 degrees. Length 393.7mm)
£52.25
£41.95
STU751
SETTRACK UNFROG LEFT HAND POINT (Radius 40.5 inch Angle 22.5 degrees. Length 393.7mm)
£52.25
£41.95



Flexi Track Option

One box of 12 yard lengths of Peco flexible track, two points (either Left Hand, Right Hand or Y points) and two packs of metal rail joiners. The RRP of this package is £205.80, our price is just £166.15.

If required there is also the Peco PL80 power feed available at an additional £6.75

FLEXI TRACK OPTION

Ref.
Description
R.R.P.
Our Price
Flexi Track Starter 1 box of 12 yards, 2 standard points, 2 packets of rail joiners
£205.80
£166.15

Limited On Space?

You may of always thought you do not have the space required for 'O' gauge but have you ever considered an end-to-end layout rather than a circuit.

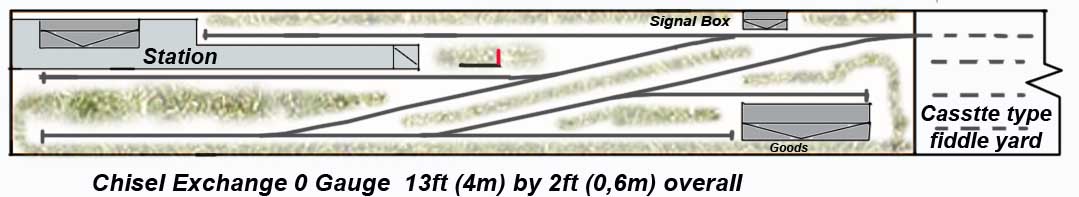

Above is a diagram of Chisel Exchange layout that has been seen at several exhibitions and shows just what can be achieved in a limited space yet still has lots of operational interest and plenty of room for intensive modelling and scenery for a great overall appearance.


Click Here to see the Peco main page on the website for details of the trackwork that is available and for templates for the individual sizes of points as a guide.

Controllers

Many newcomers to 'O' gauge will be moving up from smaller scales, in which case they may still have the controllers they used for the smaller gauges. If the newcomer is going to be buying Ixion or Dapol locomotives then an exsisting transformer giving out 12 volts at 1 amp will be sufficient. However, if the newcomer wishes to buy Heljan locomotives then it will be necessary to buy a 5amp unit such as the Helmsman 5 amp controller as Heljan locomotives require 3.5 to 4 amps.



Suitable Controllers

Ref.
Description
Our Price
100MO
Gaugemaster single track cased transformer; 2.5 amp output suitable for ixion, Dapol and all brass locos
£89.95
PO
Gaugemaster single track cased transformer; 2.5 amp output with simulation suitable for Ixion, Dapol and all brass locomotives
£109.95
CF5A
Helmsman single track cased transformer suiatble for Heljan and all other finescale 'o' gauge locomotives
£169.00
RM5
Helmsman remote handset on a 2 metre cable for use with the Helmsman CF5A
£45.00
HMEL
Helmsman 2 metre extension cable for use with the Helmsman RM5
£8.00
Click Here to view to the Helmsman Controller page on this website



Click Here to return to the starter index page
